- Model: 100-100001581WOF

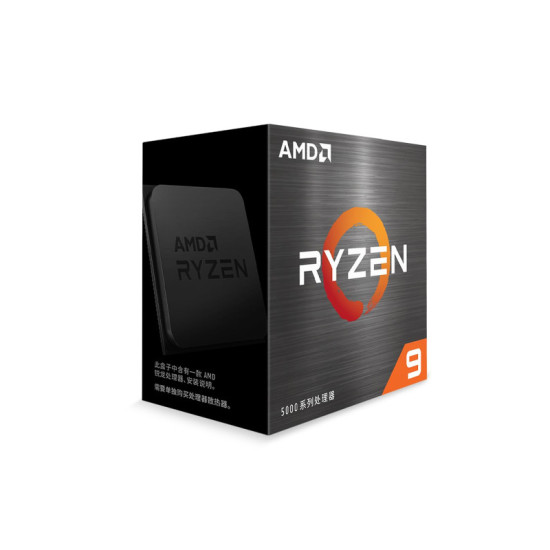

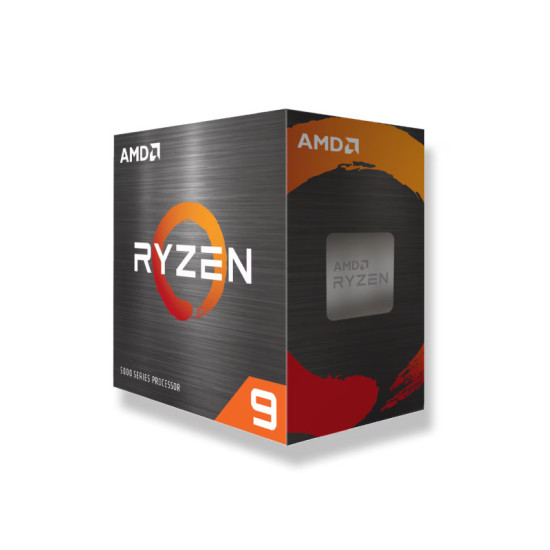

AMD Ryzen 9 5900XT
100-100001581WOF
Specification | |
General
Specifications | Name: AMD
Ryzen 9 5900XT Family:
Ryzen Series:
Ryzen 5000 Series Form
Factor: Boxed Processor , Desktops Market
Segment: Enthusiast Desktop Consumer
Use: Yes Commercial
Use: No Regional
Availability: Global Former
Codename: Vermeer Architecture:
Zen 3 # of
CPU Cores: 16 Multithreading
(SMT): Yes # of
Threads: 32 Max.
Boost Clock: Up to 4.8 GHz Base
Clock: 3.3 GHz L1
Cache: 1024 KB L2
Cache: 8 MB L3
Cache: 64 MB Default
TDP: 105W Processor
Technology for CPU Cores: TSMC 7nm FinFET Processor
Technology for I/O Die: 12nm (Globalfoundries) CPU
Compute Die (CCD) Size: 74mm² I/O Die
(IOD) Size: 125mm² Package
Die Count: 3 Unlocked
for Overclocking: Yes CPU
Socket: AM4 Supporting
Chipsets: X570 , B550 , A520 , X470 , B450 CPU
Boost Technology: Precision Boost 2 Instruction
Set: x86-64 Supported
Extensions: AES , AMD-V , AVX , AVX2 , FMA3 , MMX-plus , SHA , SSE , SSE2 ,
SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64 Thermal
Solution (PIB): Not Included Max.
Operating Temperature (Tjmax): 90°C *OS
Support: Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86
64-Bit , Ubuntu x86 64-Bit |
Connectivity | Native
USB 3.2 Gen 2 (10Gbps) Ports: 4 Native
USB 3.2 Gen 1 (5Gbps) Ports: 0 Native
USB 2.0 (480Mbps) Ports: 0 Native
SATA Ports: 2 PCI
Express® Version: PCIe® 4.0 Native
PCIe® Lanes (Total/Usable): 24 , 20 Additional
Usable PCIe Lanes from Motherboard: amd_x570 16x Gen 4 amd_x470 2x Gen 3, 8x Gen 2 NVMe
Support: Boot , RAID0 , RAID1 , RAID10 System
Memory Type: DDR4 Memory
Channels: 2 Max.
Memory: 128 GB System
Memory Subtype: UDIMM Max
Memory Speed: 2x1R DDR4-3200 2x2R DDR4-3200 4x1R DDR4-2933 4x2R DDR4-2667 ECC
Support: Yes (Requires mobo support) |
Graphics
Capabilities | Graphics
Model: Discrete Graphics Card Required |
Warranty | 3 Years |
Note* | Price, feature and specifications
are subject to change without notice. |
