Product Name

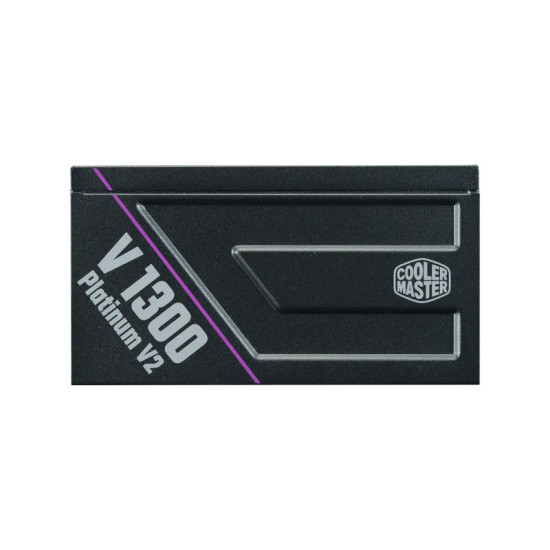

V Platinum 1300 V2

Item Code

MPZ-D002-AFAP-BIN

ATX Version

ATX 12V Ver. 3.1

PFC

Active PFC

Input Voltage

100 - 240V

Input Current

15 - 7A

Input Frequency

50 - 60Hz

Dimensions (L x W x H)

160 x 150 x 86mm

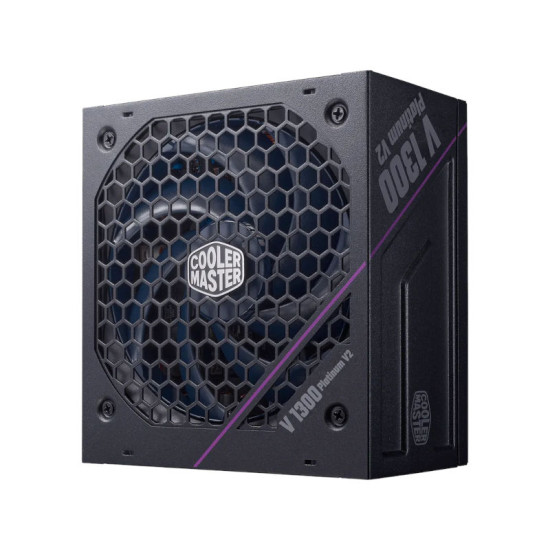

Fan Size

135 mm

Fan Bearing

LDB (Mobius FAN)

Fan Speed

2400±10% rpm

Efficiency

≥ 92% @ Typical Load

80 PLUS Rating

80 PLUS Platinum

ErP 2014 Lot 3

Yes

Operating Temperature

0 ~ 50℃

Power Good Signal

100 - 150ms

Hold Up Time

≥ 16ms

MTBF

>100,000 hours

Protections

OPP / OVP / OTP / OCP/ SCP / UVP / Surge & Inrush

Protection

Regulatory

cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA,

RoHS2.0 / BIS, KC (based on region's request.)

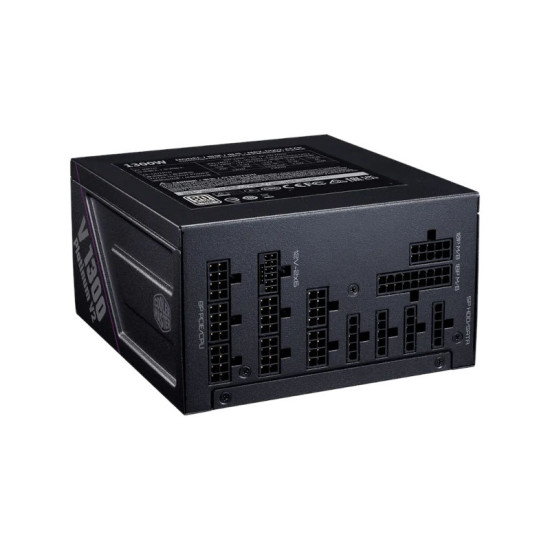

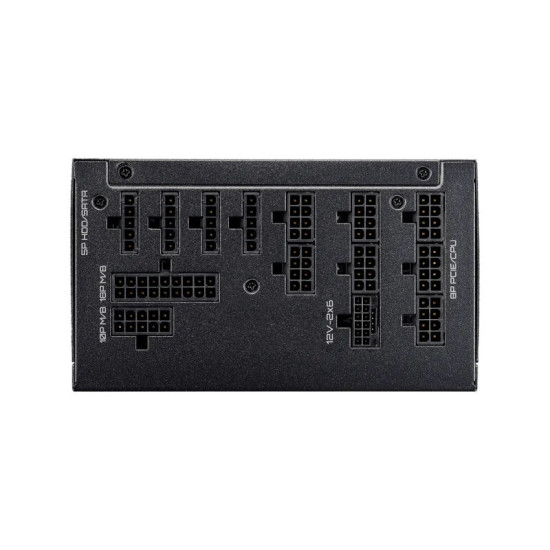

Connectors

ATX 24 Pin x1 = 1x (650mm)

EPS 4+4 Pin x1 = 1x (650mm)

EPS 8 Pin x1 = 1x (650mm)

SATA X16 = 4x (500+120+120+120mm)

Peripheral 4 Pin x4 = 1x (500+120+120+120mm)

PCI-e 6+2 Pin x5 = 5x (550mm)

12V-2x6 x1 = 1x (650mm)

Warranty

12 years

Note*

Price, feature and specifications are subject to change without notice
