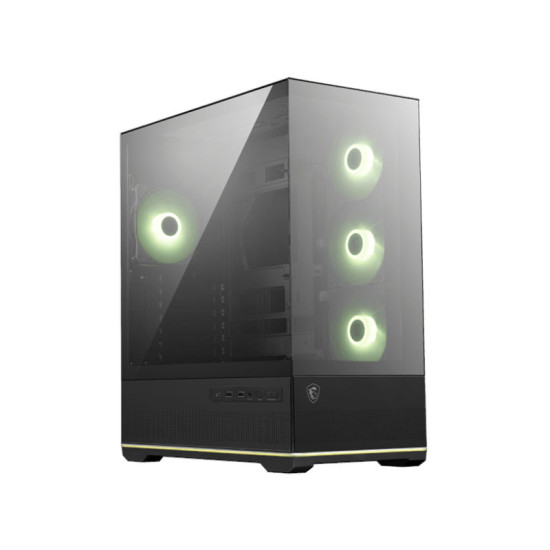

- Model: MAG PANO 110R PZ
MAG PANO 110R PZ
- 270-Degree
Display: The chassis features a 270-degree panoramic design with tempered
glass, providing an expansive view to showcase detailed components.
- Measurements:
Supports multiple motherboard sizes, including regular ATX, Micro-ATX, Mini-ITX
and back-connect ATX and Micro-ATX, allowing users to customize their PC setup.
- Pre-build
with Reverse Blades Fan: Pre-installed reverse blade fans on the side ensure an
unobstructed display of the ARGB fan’s lighting effects, free from interference
by fan frames.
- ARGB-Fan
Control Board: The 1-to-5 ARGB fan control board supports up to 5 ARGB fans,
allowing users to adjust 18 ARGB lighting effects with a single LED switch
button
- Upgrade
Airflow Layout: Supports up to 10 fans, a 360mm radiator on top and a 120mm
radiator at rear. The lower chamber, surrounded by vents, further enhances heat
dissipation for optimal performance.
Specification | |
Product
Name | MAG
PANO 110R PZ |
Case
Form Factor | Mid-Tower |
Motherboard
Form Factor Support | Regular: ATX /
Micro-ATX / Mini-ITX Back-connect: ATX /
Micro-ATX |
I/O
Ports | 1 x USB
20Gbs (Type-C) 2 x USB
5Gbs (Type-A) 1 x
Audio-Out / Mic-in 1 x LED
Button 1 x
Power Button |
Drive
Mount Support | 2 x
2.5“ 2 x
3.5“ 2 x
2.5"/3.5" combo |
Expansion
Slots | 7 |
Maximum
GPU Length | 400 mm
/ 15.75 inches |
Maximum
CPU Cooler Height | 160 mm
/ 6.30 inches |
Power
Supply Support | ATX |
Maximum
PSU Length | 200 mm
/ 7.87 inches |
Fan
Size Support | Top: 3
x 120 mm / 2 x 140 mm Front:
NA Rear: 1
x 120 mm Side: 3
x 120 mm / 2 x 140 mm Bottom:
3 x 120 mm (Above the power shroud) |
Pre-installed
Fan Size | Side: 3
x 120 mm Rear: 1
x 120 mm |
Pre-installed
Fan Type | Side: 3
x ARGB Fan (Reverse Blades Fan) Rear: 1
x ARGB Fan |
Radiator
Size Support | Top:
120 / 140 / 240 / 280 / 360 mm Front:
NA Rear:
120 mm Side:
NA Bottom:
NA |
Dimensions
(DxWxH) | 420 x
225 x 485 mm / 16.54 x 8.86 x 19.09 inches |
Connection | 1 x USB
20Gbs (Type-C) 2 x USB
5Gbs (Type-A) Mic In/
Audio Out LED
Button Power
Button |
Warranty | 1 Year |
Note* | Price, feature and specifications are subject to change without notice |
