- Model: NF-A12x25 5V PWM

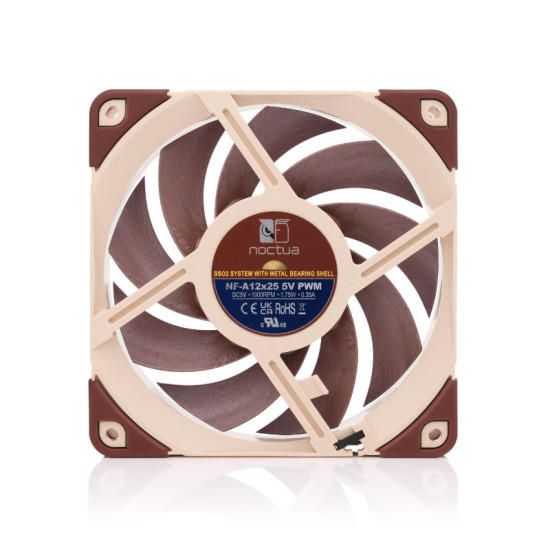

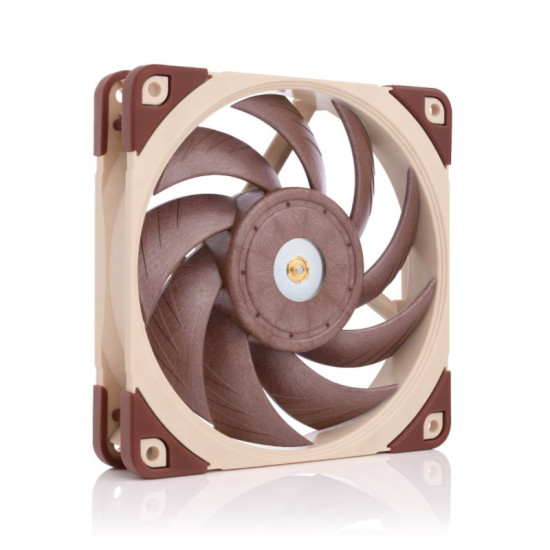

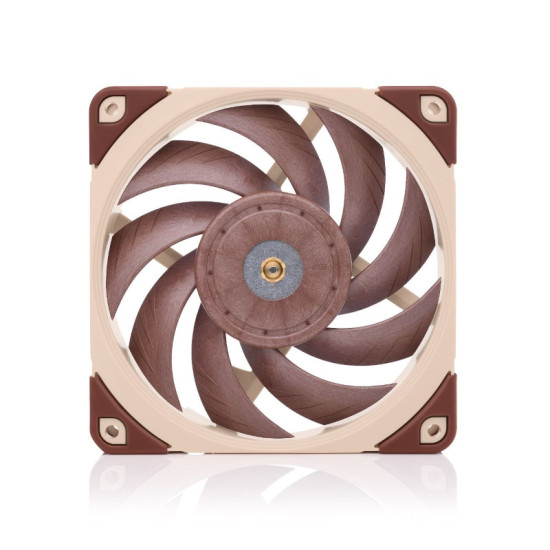

NF-A12x25 5V PWM
The NF-A12x25 5V PWM is a PWM-enabled 5V variant of Noctua’s
award-winning, premium-quality NF-A12x25 120mm fan. Featuring an AAO (Advanced
Acoustic Optimisation) standard frame and sophisticated aerodynamic design
measures such as Flow Acceleration Channels, the NF-A12x25 is renowned for its
superior performance and outstanding quietness of operation. Smooth Commutation
Drive technology and Noctua’s reference class SSO2 bearing guarantee superb
running smoothness and excellent long-term stability. Topped off with the
included USB power adaptor cable, OmniJoin™ adaptor set and 6-year
manufacturer’s warranty, the NF-A12x25 5V PWM is a premium choice for demanding
5V applications that require PWM control.
Specification | |
Notes
and warnings | Being a
5V fan, the NF-A12x25 5V PWM cannot be run at 12V and will be damaged when
used with typical 12V power sources such as PC motherboard fan headers. |
Size | 120x120x25
mm |
Mounting
hole spacing | 105x105
mm |
Connector
& pin-configuration | 4-pin
PWM |
Cable
length | 20cm +
30cm NA-EC1 extension cable |
Bearing | SSO2 |
Blade
geometry | A-Series
with Flow Acceleration Channels |
Frame
technology | AAO
(Advanced Acoustic Optimisation) |
Material | Sterrox®
LCP |
Rotational
speed (+/- 10%) | 1900
RPM |
Min.
rotational speed @ 20% PWM (+/-20%) | 450
RPM |
Airflow | 96.2 m³/h |
Acoustical
noise | 21.4
dB(A) |
Static
pressure | 2.07 mm
H₂O |
Input
power (typical) | 1.48 W |
Input power
(max.) | 1.75 W |
Input
current (typical) | 0.3 A |
Max.
input current | 0.35 A |
Operating
voltage | 5 V |
Voltage
PWM signal | 5 V |
MTTF | >
150.000 h |
Scope
of delivery | 30cm
extension cable NA-AV2
anti-vibration mounts USB
power adaptor cable OmniJoin
adaptor set Fan
screws |
Warranty | 6 Years |
Note* | Price, feature and specifications
are subject to change without notice. |
