- Model: NF-F12-5V-PWM

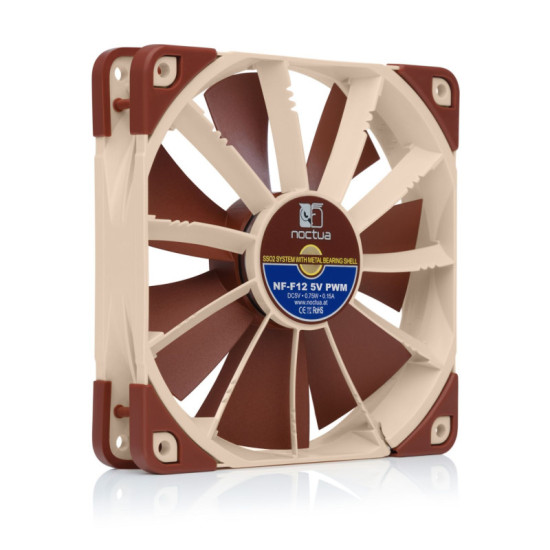

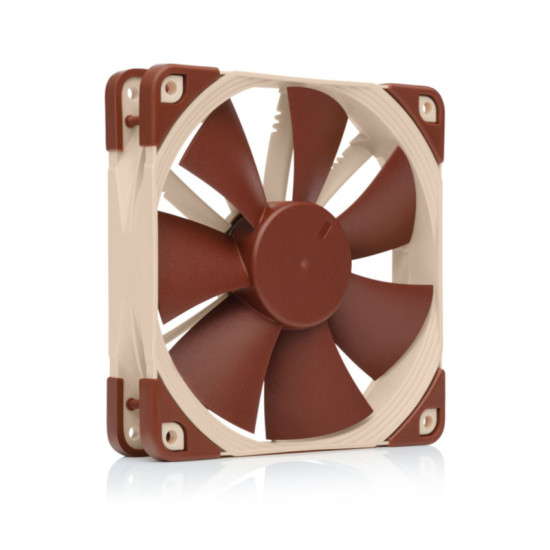

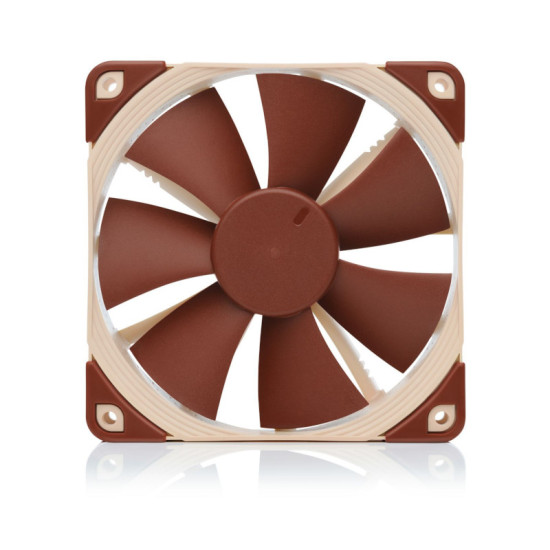

NF-F12 5V PWM
The NF-F12 5V PWM is a PWM-enabled 5V variant of Noctua’s
award-winning, premium-quality NF-F12 120mm fan. Featuring an AAO (Advanced
Acoustic Optimisation) standard frame and sophisticated aerodynamic design
measures such as the FocusedFlow™ system, the NF-F12 is renowned for its
superior performance and outstanding quietness of operation. Smooth Commutation
Drive technology and Noctua’s reference class SSO2 bearing guarantee superb
running smoothness and excellent long-term stability. Topped off with the included
USB power adaptor cable, OmniJoin™ adaptor set and 6-year manufacturer’s
warranty, the NF-F12 5V PWM is a premium choice for demanding 5V applications
that require PWM control.
Specification | |
Notes
and warnings | Being a
5V fan, the NF-F12 5V PWM cannot be run at 12V and will be damaged when used
with typical 12V power sources such as PC motherboard fan headers. |
Size | 120x120x25
mm |
Mounting
hole spacing | 105x105
mm |
Connector
& pin-configuration | 4-pin
PWM |
Bearing | SSO2 |
Blade
geometry | Heptaperf™ |
Frame
technology | Focused
Flow™ |
Rotational
speed (+/- 10%) | 1500
RPM |
Min.
rotational speed @ 20% PWM (+/-20%) | 300 RPM |
Airflow | 93.4 m³/h |
Acoustical
noise | 22.4
dB(A) |
Static
pressure | 2.61 mm
H₂O |
Input
power (typical) | 0.65 W |
Input
power (max.) | 0.75 W |
Input
current (typical) | 0.13 A |
Max.
input current | 0.15 A |
Operating
voltage | 5 V |
MTTF | >
150.000 h |
Scope
of delivery | 30cm
extension cable NA-AV1
anti-vibration mounts USB
power adaptor cable OmniJoin
adaptor set Fan
screws |
Warranty | 6 Years |
Note* | Price, feature and specifications
are subject to change without notice. |
